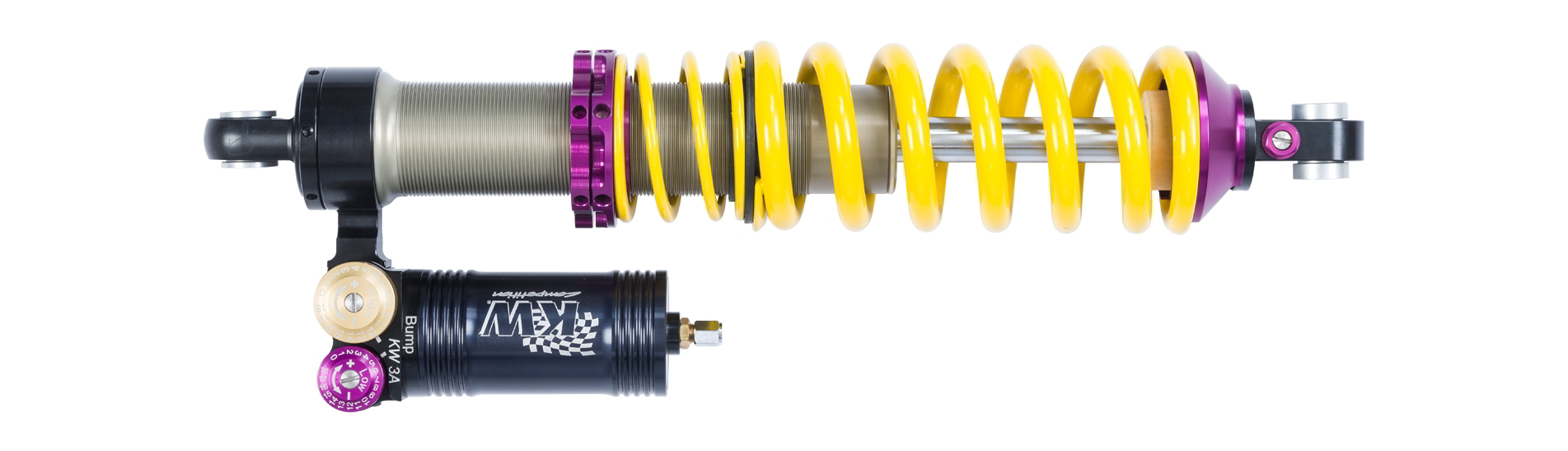

KW Competition 3A Coilover

KW Competition 3A

3-way adjutable racing damper technology with reservoir





KW Competition STRS3A are SingleTube dampers with reservoir, coil spring valve technology and 3-way damper force adjustment. The basic compression stage has an individually pre-configurable midspeed valve, in addition to the high speed and low speed compression adjustment, the transition point from a progressive to a digressive characteristic curve can be varied. The adjustable rebound stage can be optimally configured for the intended purpose by an extensive number of needle valves and coil springs with a linear, progressive or digressive characteristic.
The STRS3A technology convinces by a maximum reliability and low maintenance effort. For McPherson-axles with 40mm Inverted damper cartridge as STRS3A 40P plain bearing or in the unique friction-optimized linear bearing version STRS3A 40L. For the rally use with standpipe diameter 45mm and 50mm available as KW Competition STRS3A 45P or STRS3A 50P.



Examples of application:
Porsche 991 GT3 R, BMW Z4 GT3, Scuderia Cameron Glickenhaus SCG003 C
Self-built race cars for circuit, hill, slalom and rally.





Details at a glance:
  • SingleTube
  • Separate compression and rebound valves
  • 3-way adjustable
  • Damping adjustment: 18 or 22 clicks rebound; 18 clicks compression damping in low speed; 18 clicks compression damping in high speed
  • Pre-configurable compression-midspeed-valve
  • Individual characteristic design for a linear, progressive or digressive characteristic
  • Piston rod diameters: 18mm or 22mm
  • Piston diameters: 35mm, 36mm, 40mm and 43mm
  • Damper or height-adjustable racing coilover struts in STRS3A-version
  • McPherson-sturts in upside-down-version STRS3A 40P or STRS3A 45P
  • Linear bearing version with 40mm upside-down cartridge STRS3A 40L

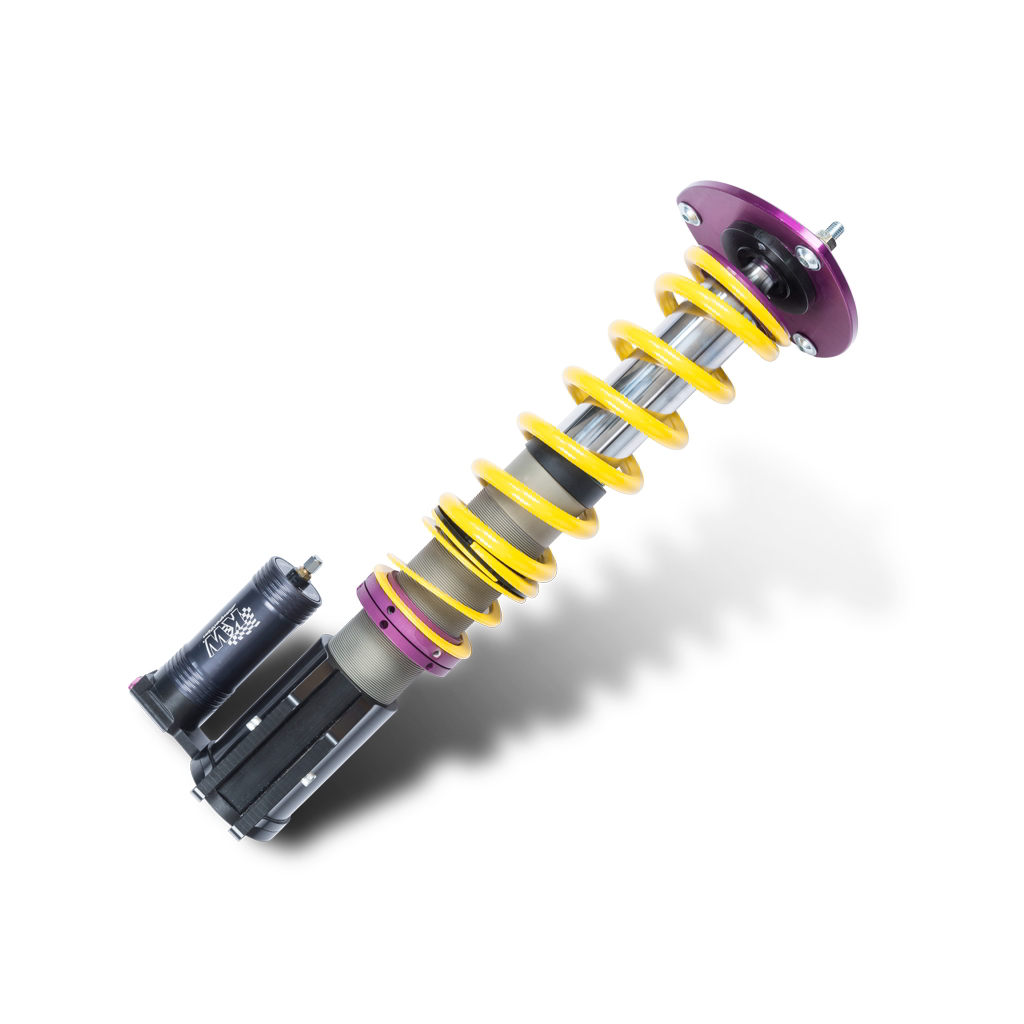

KW Competition 3A / KW STRS3A





Details at a glance:
  • SingleTube damper with separate compression and rebound valve with coil springs
  • 3-way adjustable
  • Pre-configurable compression-midspeed-valve
  • Damper or height-adjustable racing coilover struts with piston rod diameters: 18mm or 22mm
  • Pressure compensation tank as piggyback (rotatable up to 360°) or with hose connection for an installation independent of construction
  • Low-pressure gas filling
  • Housing made of high-strength aluminium


Purpose:
For non-wheel guiding dampers and struts.
GT3, Circuit, Drift, Hill Climb, Rally.

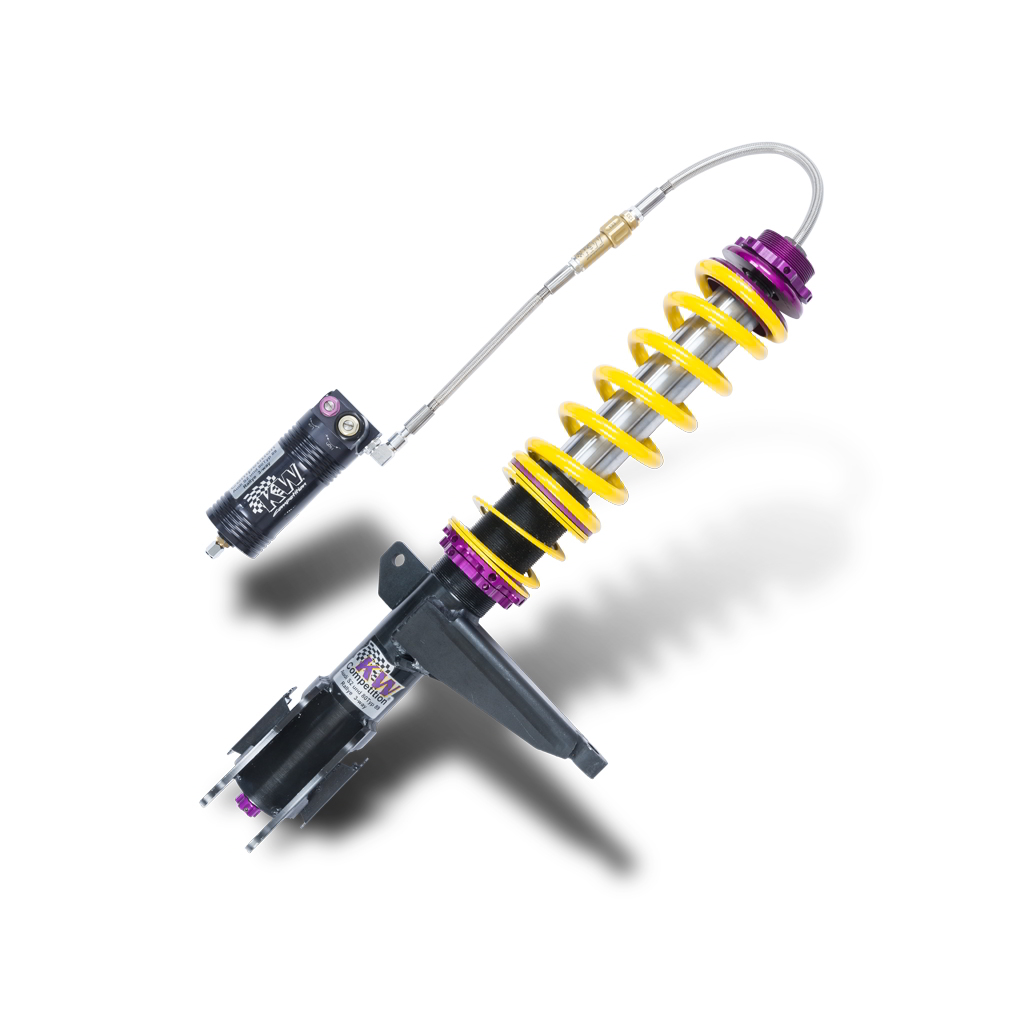

KW COMPETITION 3A / STRS3A 40P / STRS3A 45P





Details at a glance:
  • SingleTube damper with separate compression and rebound valve with coil springs
  • 3-way adjustable
  • Pre-configurable compression-midspeed-valve
  • McPherson-struts with 40mm or 45mm inverted damper cartridge and plain bearing
  • Reservoir with low-pressure gas filling and hose connection for an installation independent of construction
  • Housing made of high-strenght aluminium or in galvanized steel version


Purpose:
For McPherson applications with increased cornering forces.
GT3, Rally, Circuit, Drift, Hill Climb





KW COMPETITION 3A / STS3A 40L

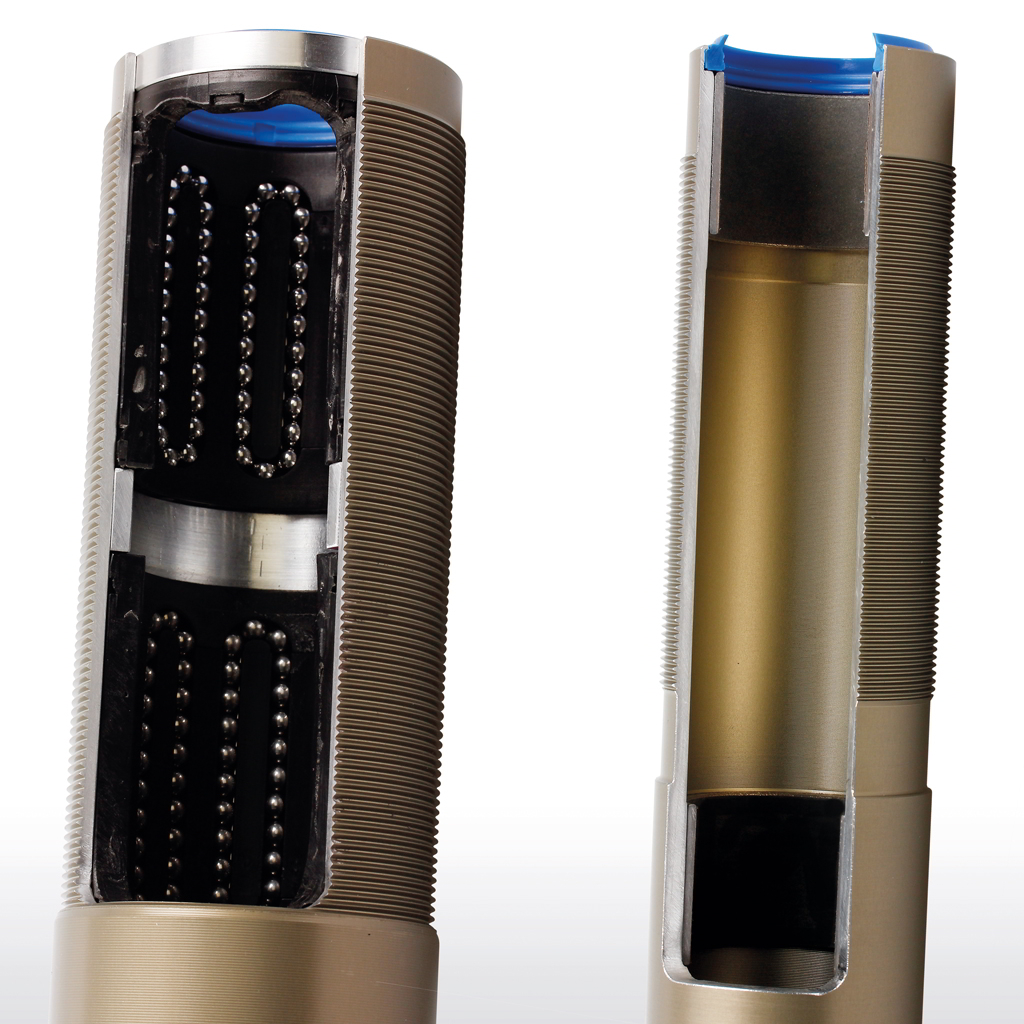

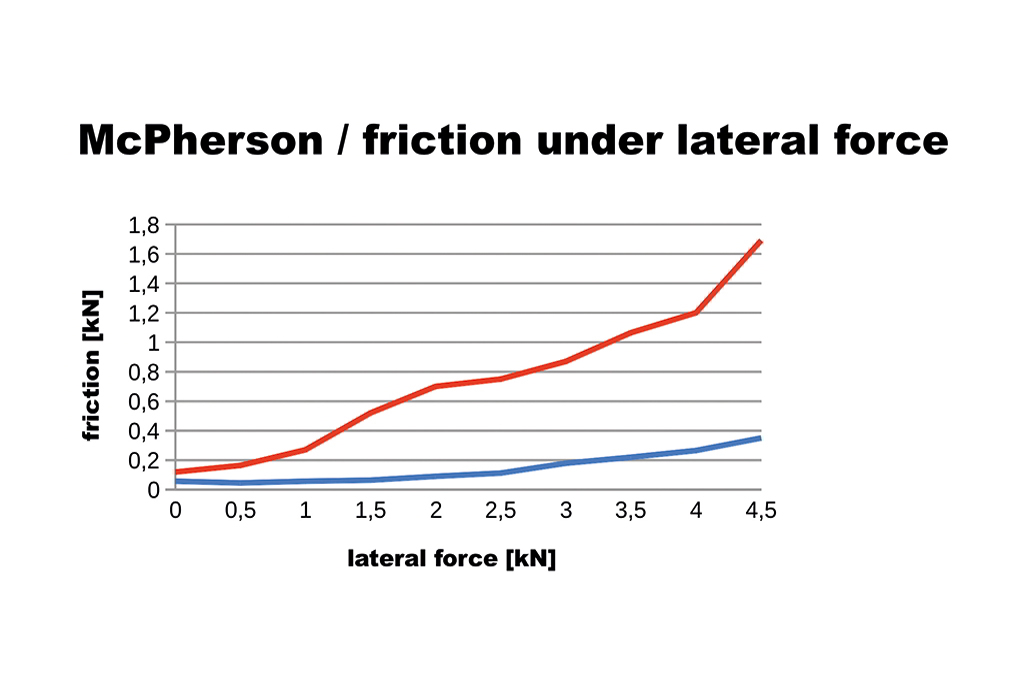

Our 3-way adjustable SingleTube dampers are in addition to the conventional upside-down versions also available as special linear bearing solution STS3A 40L, which is characterized by a lower friction and a low breakaway torque. As wheel-guiding McPherson struts are exposed to highest loads during cornering and braking, the advantage of KW linear bearings at increasing transverse forces (lateral forces) is up to 87% less friction compared to plain bearings.





Advantages linear bearing:
  • 40mm inverted damper cartridge
  • High stability & camber stiffness
  • Low brakeaway torque
  • Up to 87% less friction under transverse force (lateral force)




KW COMPETITION 3A / STRS3A 50PG





Details at a glance:
  • SingleTube dampers with separate compression and rebound valve with coil springs
  • 3-way adjustable
  • Pre-configurable compression-midspeed-valve
  • McPherson-strut with 50mm plain bearing and guide tube
  • Reservoir with low-pressure gas filling
  • Housing made of high-strenght aluminium or in galvanized steel version


Purpose:
For McPherson-applications with increased cornering forces.
Rally, Rally cross.
