KW Coilovers Variant 3 for the new BMW 5-series (G30) available

Comfort and driving dynamics in perfection: KW Coilovers Variant 3 for the new BMW 5-series (G30) available

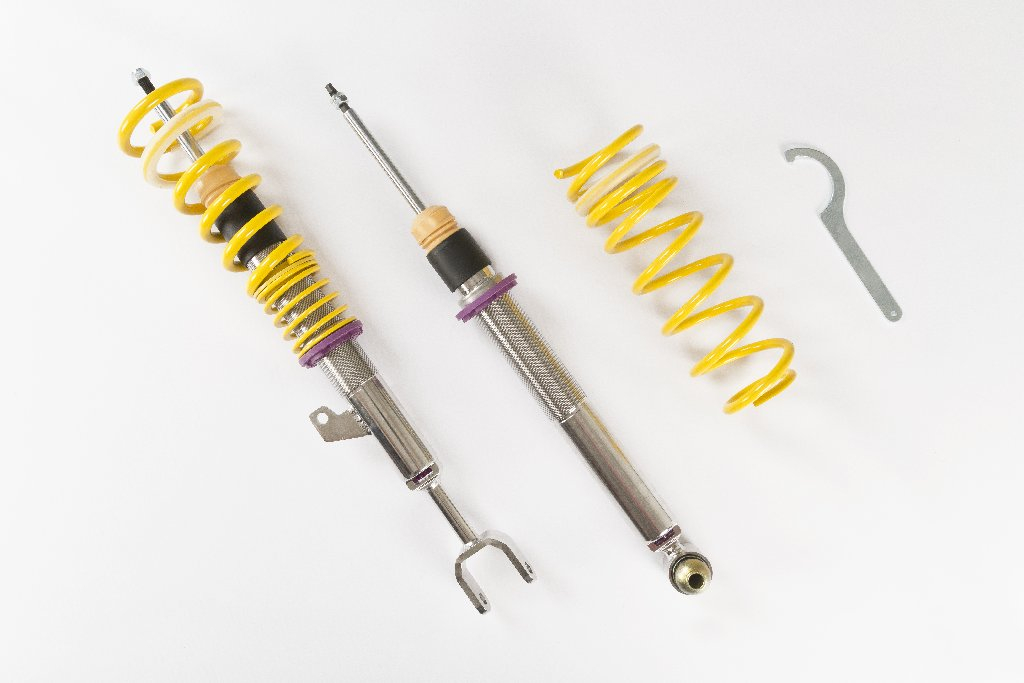

The KW coilovers made of stainless steel allows a continuous lowering of up to 55 mm and increases the dynamic and and sporty driving behavior of the BMW 5-series



For decades, the BMW 5-series has been a benchmark in the upper medium class and it looks back on a 45-year model history. The new BMW 5-series (G30) was released in spring 2017 and the KW Variant 3 coilovers for the sedan are already available.





The suspension made of stainless steel allows a continuous lowering of up to 55 mm and increases the dynamic and and sporty driving behavior of the BMW.




KW automotive has developed a number of suspension setups for numerous BMW models and is also cooperating with the Munich automotive manufacturer on various special models and motor sport projects.

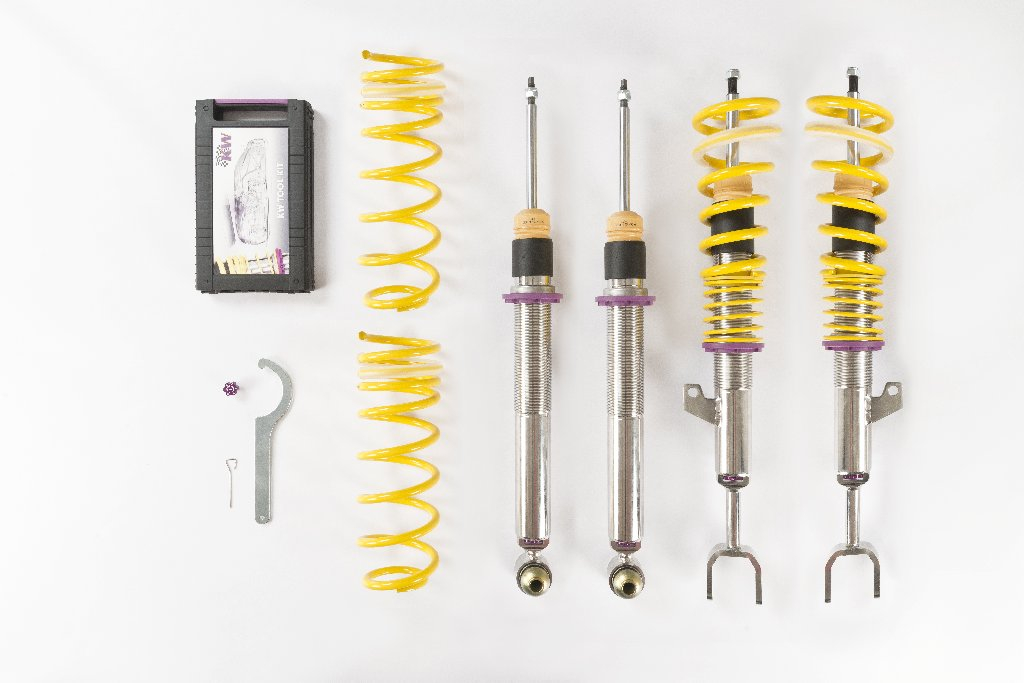

KW automotive has developed a number of suspension setups for numerous BMW models and is also cooperating with the Munich automotive manufacturer on various special models and motor sport projects. For example, for the official BMW customer motor sport program, KW provides dampers that are independently adjustable in compression and rebound damping for the BMW M235i Racing. Drivers of the new BMW 5-series (G30) can also benefit from this cooperation. The KW Variant 3 coilover kit is now available for the sedan, where the dampers can be adjusted manually, just like the suspensions for the M235i Racing.





Continuous lowering without losing the remaining comfort

Comfort and driving dynamics in perfection: KW Coilovers Variant 3 for the new BMW 5-series (G30)



Many drivers like to use sporty light-alloy rims, which are not offered by BMW, and with the adjustable dampers of the Variant 3 coilovers, they can now take into account the different wheel / tire combinations in regards to driving dynamics and driving comfort.



KW-Ventiltechnologie, mit den separat in der Zugstufe (16 Klicks) sowie der Druckstufe (12 Klicks) einstellbaren Dämpfern.
Über das integrierte Klickrädchen direkt am Edelsteingehäuse kann die Dämpfungskraft in zwölf Klickstufen separat von der Zugstufe so justiert werden, dass selbst bei extrem anspruchsvollen Fahrmanövern kaum Nick- und Rollbewegungen auftreten.

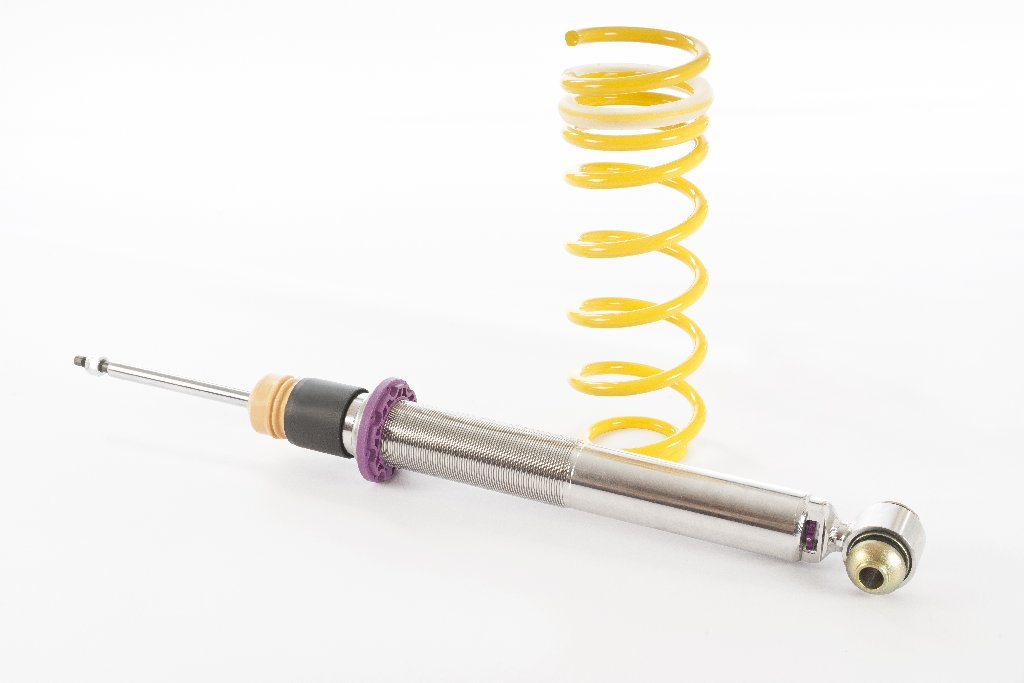

The rebound stage can be set either stiffer or softer with 16 exact clicks via the rebound adjuster at the upper end of the piston rod. With a lower rebound force, the comfort is increased, while at a higher rebound force, the handling is further increased and the body vibrations are reduced. So even at very high speeds, the steering precision is noticeably improved.



Many drivers like to use sporty light-alloy rims, which are not offered by BMW, and with the adjustable dampers of the Variant 3 coilovers, they can now take into account the different wheel / tire combinations in regards to driving dynamics and driving comfort.

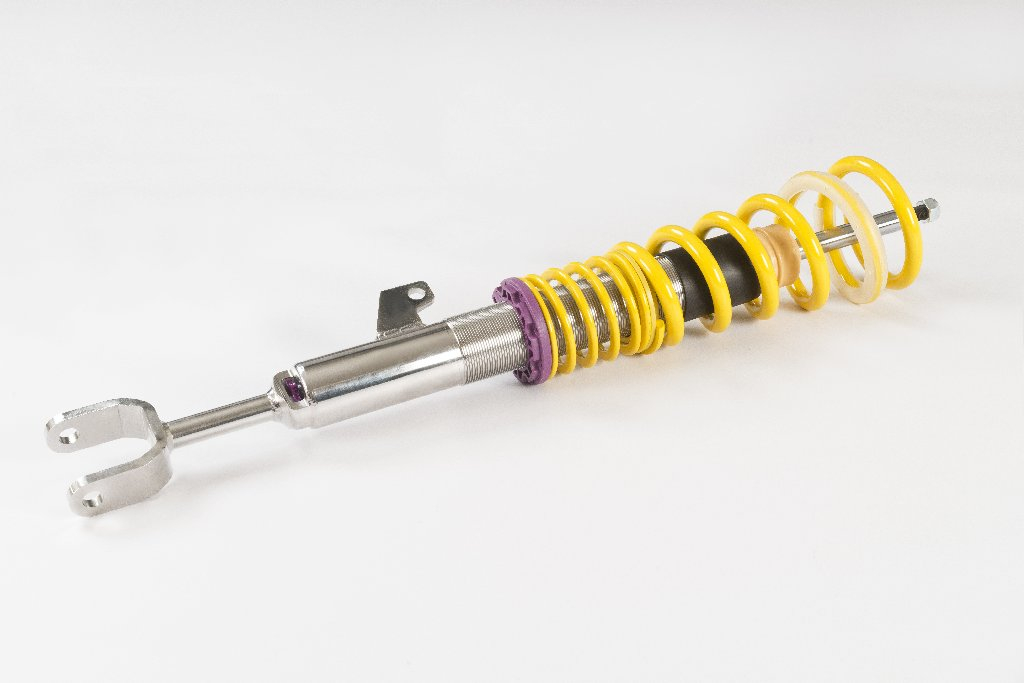

Independently, the patented KW multi-way valve can be adjusted at the low speed compression level, which in combination with the suspension spring also has an influence on the immersion speed of the piston rod. Via the integrated click wheel located directly on the stainless steel housing, the damping force can be adjusted in twelve clicks separately from the rebound, so that hardly any pitch and roll movements occur even in extremely demanding driving maneuvers. In addition, a higher compression stage on the front axle supports an even more direct steering and on the rear axle it counteracts the oversteering.





For the Variant 3 suspension technology, KW also uses pre-set high speed compression valves. This enables when driving over ground shafts or large cross-joints, even at the maximum lowering of the BMW that the valves are opened and the suspension absorbs it effortlessly. This means the sedan cannot pitch in such driving situations, it remains drivable and stable, eliminating a sudden shockwave through the chassis of vehicle. With our Variant 3, the new BMW 5-series can be driven sporty and comfortable.



We also build for modern classics and classic BMW 5series cars like E28 and E12 KW suspension kits.



KW also develops for further BMW cars and even for the ancestors of the BMW G30 – F10, E60, E39, E34 – our KW coilovers. We also build for modern classics and classic BMW 5series cars like E28 and E12 KW suspension kits. Please get in touch with our dealers or direct with us.
